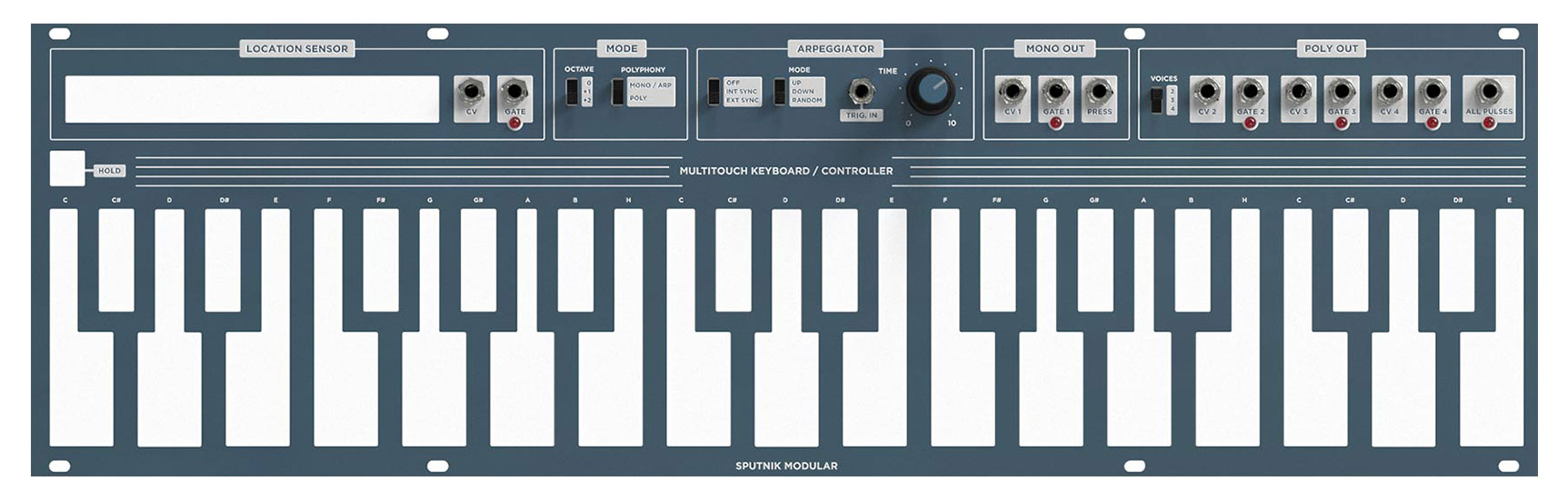

sputnik modular multi-touch keyboard controller price : $499.00

the sputnik modular multi-touch keyboard controller includes 29 keys, up to 4 voices and the following features:

control per key
1v/oct
"pressure" cv (measured surface amount)
gate cv

arpeggiator
internal and external sync switch
up, down, and random modes
cv trigger input
manual time control control knob
hold

modes
polyphony mono/arp or poly (2,3,4 voices)
octave switch for +1, +2
in mono/arp mode, cv2 sends cv1+2 semitones, cv3 sends cv1+4 semitones, cv4 sends + 7 semitones
in mono/arp mode gate 1 sends every gate, gate 2 every 2nd gate, gate 3 every 3rd gate and gate 4 every 4th gate and can work like a clock divider

location sensor
touch sensitive location strip with both cv and gate outputs

mono outputs
cv 1 out
gate 1 out
pressure cv out

polyphonic outputs
2,3,4 voice switch
cv 2-4 outs
gate 2-4 outs
all pulses out

also includes a 5v or 10v switch on the pcb for pressure and location

84hp +12v/-12v/+5
