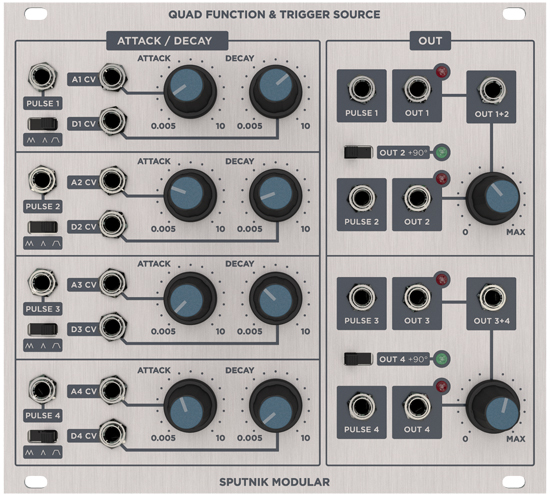

sputnik modular quad function & trigger source
price : $299.00
|
|
the quad function & trigger source provides four independent or paired (quadrature mode) function generators.
features:
attack and decay
4 generators
the time range of each generator (.005--10 seconds) can be controlled via cv pulse input jacks for both attack and decay + control knobs
3--mode switch per generator: cycle (lfo), transient, sustained output
each generator includes cv output + pulse output that generates a transient pulse at the end of the decay segment: if the generator is in cycle mode for instance, that cycle will repeat
quadrature mode switch with green led: when engaged, 1+2 (or 3+4) work in tandem + a shift of 90 degrees to each other. these pairs can then be linked creating complex adsr envelopes.
attenuator knobs for outputs.
|
