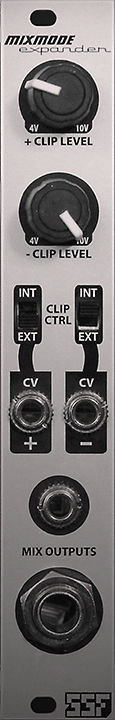

steady state fate mixmode expander price : $69.00

the expander provides panel mounted controls for the bipolar symmetry and threshold adjustment of the saturator as well as cv inputs for voltage controlled saturation.

two dedicated mixer outputs are provided via 1/8" and 1/4" output jacks. the 1/4" jack is very easily modifiable using one to two through-hole resistors to tailor the output level. this mod allows mixmode to interface with external line and low level devices without the need for an intermediate attenuator. please inquire with ssf for more details and/or modification service.

specfications:
cv input range: 20vpp
same mixer output specs as mixmode

power requirements:
0v; no current draw

dimensions:
width: 4hp
depth: 27mm max

mixmode expander is rohs and ce compliant
