the modules we have available are the newest version as of april 29, 2019. they are now a lot thinner and will fit in most skiffs. the depth from the back of the front panel to the deepest part placed
on the pcb is about 1.5 inches.

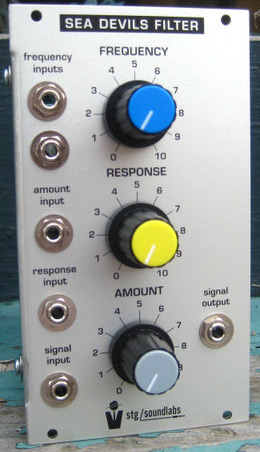

a three pole diode ladder lowpass filter with voltage controlled resonance.
there are two famous 3 pole diode ladder lowpass filters. one of them was in a little silver box of a synthesizer with integrated sequencer that was used to make "acid tracks" and the other one was was in a big
suitcase of a synthesizer with a silver faceplate and semi-integrated sequencer that was used to make tracks while on acid. this is the latter. we're not going to name any names here but let's hope we don't
have to mention any voltage controlled studios or electronic music studios to establish the lineage of this filter topology.
we can't promise this thing will make sea devils appear on your lawn or models of airplanes fly from one side of the stage to the other, crashing into a papier mache sun at the end of your song, so please don't
be offended if these things fail to happen while using the filter- presuming you want to own one.
