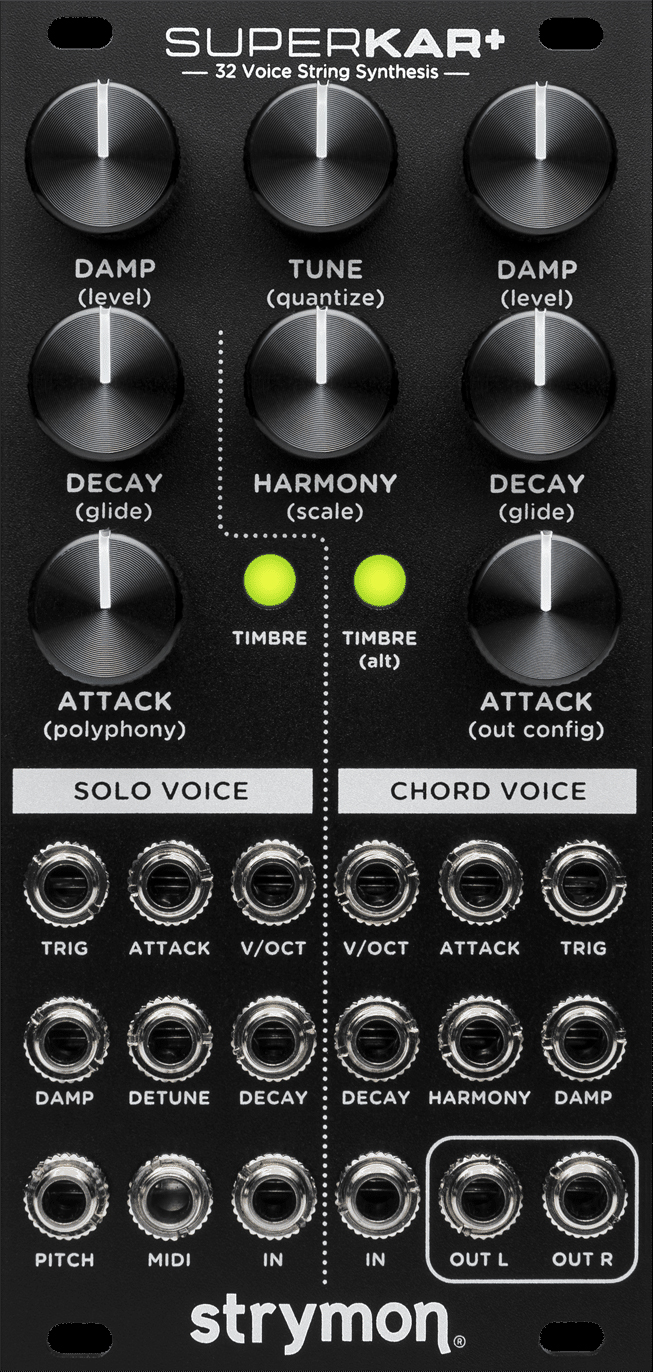

superkar+ is a eurorack voice module that uses karplus-strong synthesis to create the sound of plucked or bowed strings, struck or blown pipes or tubes, or a suite of other sounds from percussive textures to legato melodies and chords with smart harmonies. this is karplus-strong synthesis at its most intuitive and
captivating.
karplus-strong is a form of delay feedback synthesis, where every tone and texture is constantly in a state of varying tension. superkar+ is an engagingly responsive instrument, as tiny changes in attack/decay time and damping create an infinite variety of subtle or dramatic timbral shifts, and variable random per-note
detuning can create lifelike realism.
deceptively powerful, invitingly simple and intuitive
with an interface that can be understood at a glance, the sheer amount of music you can create with a single superkar+ module borders on mind-blowing. it draws you in, allowing you to generate full-sounding arrangements with as much musical and timbral variation as you can imagine via cv connections. powerful enough to be the center
of endless sonic exploration, superkar+ delivers all of this in a compact 12hp form factor.
self-contained voice module
the nature of karplus-strong synthesis means that you won't need to dedicate vcas or amplifier envelopes to superkar+. independent attack, decay and damping are included for both the solo and chord voices, and the module also includes an internal mixer with independent output levels for both voices, as well as multiple stereo and
mono audio output modes.
two instruments in one: independent melodies and chords
superkar+ is divided into two halves or voices: a solo voice and a chord voice, both of which can be played simultaneously and independently of each other if desired. both voices can be triggered and pitched independently via control voltage, while the solo voice can also be controlled polyphonically via midi.
independent timbre selections are available for both voices, and each voice has its own independent level control and can be routed through a separate audio output if desired.
specifications: sound design
karplus-strong based voice module
two independent voice channels - solo voice and chord voice
each voice is polyphonic up to 16 notes
solo voice plays single notes capable of sustaining simultaneously
chord voice plays chord structures based on the root from the received v/ oct (volt per octave) cv
chord voice includes fixed intervals with smart harmonies available
selectable wide & narrow stereo, split voice, and mono output options
midi input controls the solo voice for a 16 part polyphonic experience
with velocity sensitivity (when using midi, unplug the solo voice trig and solo voice v/oct cvs)
solo voice is tuning stable to six octaves via cv and eight octaves via midi, and the chord voice is tuning stable to five octaves
ins, outs and switches
stereo inputs and outputs
extensive cv control of parameters
usb jack (located on the rear) for performing firmware updates
audio quality
520mhz arm superscalar processor
32-bit floating point processing
dimensions and power
rack width: 12 hp
rack depth: 1.5" (38mm)
power requirements: +12v rail: 120ma, -12v rail: 120ma, +5v rail: 0ma
