studio electronics attenulag price : $139.00

multi-purpose heavy lifter. the attenuators reduce level, audio or cv, when switch is set to off. with the switch up the audio/signal passes through at full level. the inputs are linked together: patching into channel 1 drives both attenuators; patching into channel 2 breaks the link. experimentation with key tracking to create alternative tunings, or interaction with audio inputs that don't afford attenuation-does good things. the two lag circuits provide a handy cv mult/hub for oscillator and filter tracking (perfect for cv-ing up our oscillation module with its switchable one in/three out structure for both attenuation and slewing-x2) and are linked together: if you patch into channel 1 only, the outputs of both channels are driven (just like the attenuation circuit); patching into channel 2 breaks the link and they become two separate cv mult/lag circuits-envelopes look out.

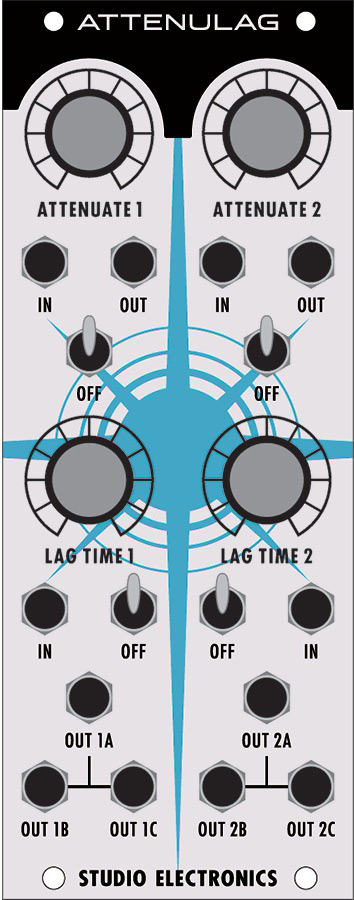

four pots:
attenuate 1, attenuate 2, lag time 1, lag time 2.

four switches:
off: the top two handle attenuation duties; the bottom are wired to lag time.

ten patch points:
attenuate 1: in, out; lag time 1: in, out 1a, out 1b, out 1c; attenuate 2: in, out; lag time 2: in, out 2a, out 2b, out 2c

common controls and patch points:
attenuation
attenuate - level reduction.
in - attenuation input.
out - attenuation output.
off - bypass is in up position.
lag
lag time - exponential slewing amount-still affectionately called glide in some quarters.
in - lag input.
off - lag bypass.
out a - lag output a.
out b - lag output b.
out c - lag output c.

vitals:
size - 10hp
depth - 25mm with ribbon cable attached
power usage - 15ma
