studio electronics levels price : $125.00

levels is a versatile, low-noise six channel summing mixer/attenuator for audio and cv, which can be used rather effectively in a variety of ways: 6 in 1 out, or two separate mixers: 4 in 1 out, and 2 in 1 out, e. g., when only jacked-in to mix 5/6 output all input channels pass through; utilizing the 1-4 out removes channels 1-4 from the mix 5/6 output. handy indeed.

the pots are wired with a logarithmic volume curve that is tuned for use with audio but it will work splendidly with cv as well. pressing levels into service as a wave-shaper by patching all of the individual oscillation waveform outs (sub, sine, tri, saw, ramp, square) into channel inputs 1-6, makes beautiful music, and an exclusive, vast, morphable hybrid waveform of your innermost sound designs; it feels that kind of good when the these two modstar pieces are tied-in together.

potentiometer potential
six attenuation pots control the channel 1, channel 2, channel 3, channel 4, channel 5, and channel 6.

patch it up
eight patch points: ch1 in, ch 2 in, ch 3 in, ch 4 in, ch 5 in, ch 6 in, 1-4 out, mix/5-6.

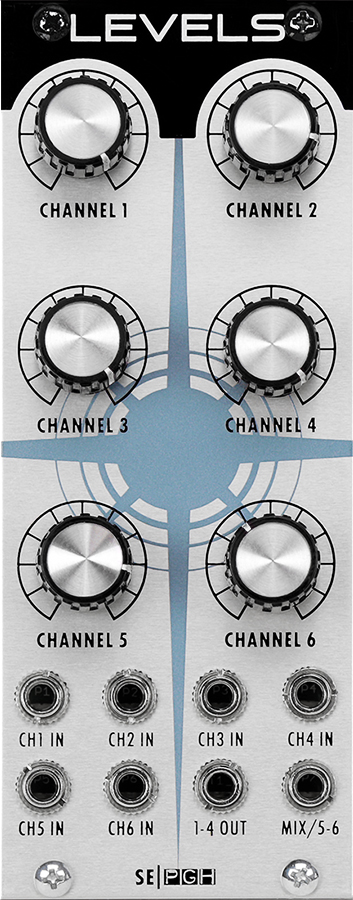

all controls and patch points
channel 1 - adjusts the level or value of 1.
channel 2 - adjusts the level or value of 2.
channel 3 - adjusts the level or value of 3.
channel 4 - adjusts the level or value of 4.
channel 5 - adjusts the level or value of 5.
channel 6 - adjusts the level or value of 6.
ch 1 in - channel 1 input.
ch 2 in - channel 2 input.
ch 3 in - channel 3 input.
ch 4 in - channel 4 input.
ch 5 in - channel 5 input.
ch 6 in - channel 6 input.
1-4 out - channels 1-4 output.
mix/5-6 - all channels output (mix), or 5-6 when cable is plugged into any of the 1-4 channel inputs

specifications:
size - 10hp
depth - 39.7mm with ribbon cable attached
power usage - 22ma (+12 / -12)
