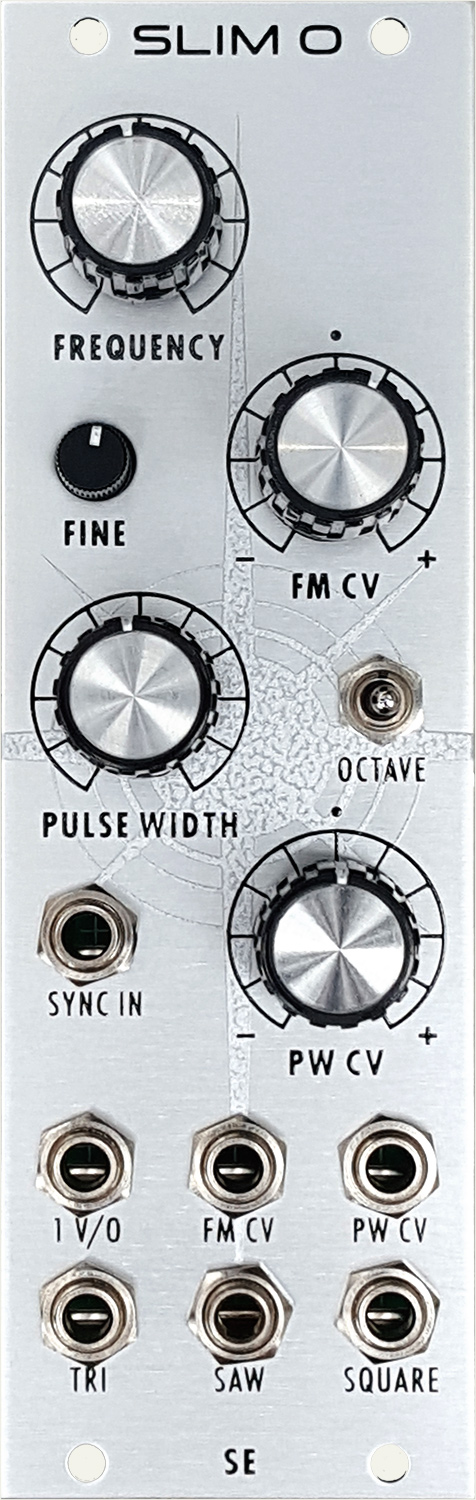

studio electronics slim o price : $179.00

the slim o shares our beefy oscillation sound engine, so it is every bit as gorgeously stable-and of course tracks pitch remarkably well-but is sensibly slimmed down to 8hp essentials, with no tonal or quality sacrifice allowed; the slimo is midimini big sonically, with a three position octave switch for smart and easy octaving.

add this compact, beefy vintage voice and power to your modular, sans the usual negatives connected with such quality of oscillation: excessive expenditure and space consumption, and sound sweet or searing, or somewhere else on the road to your frequency and waveform.

6 pots:
frequency, fine, fm cv, pusle width, pw cv.

1 switch:
octave - three position range switch: ±1 octave switch.

7 patch points:
1 v/o, fm cv, pw cv, tri, saw, square.

all controls and patch points:
frequency - oscillator frequency attenuator.
fine - oscillator fine-tune trim.
fm cv - frequency modulation control voltage attenuverter.
octave - +1/-1 octave switch.
pulse width - pulse width attenuator.
sync in - oscillator sync control voltage input.
pw cv - pulse width control voltage attenuverter.
1 v/o - one volt per octave control voltage input.
fm cv - frequency modulation control voltage input.
pw cv - pulse width control voltage input.
tri - triangle wave output.
saw - sawtooth wave output.
square - square wave output.

specifications:
size - 8hp
depth - 39.7mm with ribbon cable attached
power usage - 20ma, 39ma (±12)
