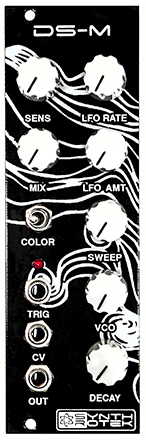

synthrotek ds-m price : $174.99

the ds-m is a full featured drum synth that can emulate virtually any drum sound!

the ds-m (drum synth module) is a complex, modifiable, 100% analog drum synth loosely based on the coron ds-8 and neatly packaged into an 8hp module.

changes to the original ds-8 include:
vca-like trigger input (more voltage = louder output)
trimmer-adjustable attack
led trigger indicator
1v/o tracking (c0-c4)
triangle core oscillator
additional noise color switch setting (3 settings instead of 2)
more distinct noise timbres
louder, improved noise circuit
really low bass frequencies
total range ~4hz to 2.6khz

in addition to being a highly versatile analog drum synth, this unit is also a fully functional monophonic synth that has these features:
1v/o tracking (c0-c4)
adjustable attack and decay envelope over the vca
built-in lfo circuit
sweep circuit
noise circuit

plug your control voltage and gate directly out of your midi-to-cv converter or connect your qunexus keyboard, arturia keyboard, or sequencer, and you're ready to make some music!

note: complete units come pre-calibrated (according to the synthrotek deluxe power supply system). if you are building a kit or have a different power supply system, you will need to calibrate the 1v/o tracking using the ds-m calibration guide.

width: 8hp
depth: 1.75" (44mm)
power connection: 10 pin keyed eurorack
current draw: +12v: 20ma, -12v: 10ma (5v not used)
