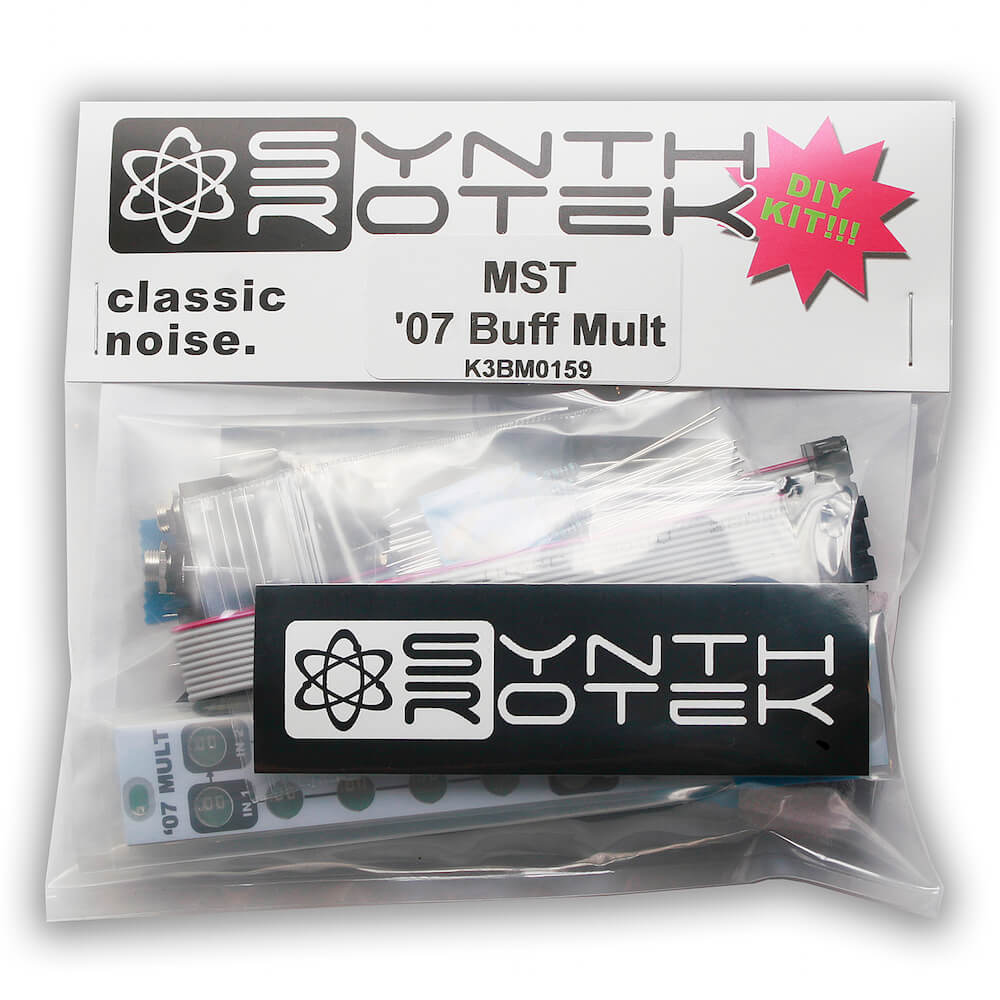

the mst '07 buffered multiple is the original buffered mult design invented by george mattson in 2007. it's a precision mult that is perfect for 1v/o cv sources. a signal plugged into input 1 will
be available from all 14 outputs. break the chain by adding a second signal into input 2; signal 1 comes out 4 outputs and signal 2 is available at the remaining 10. plug in as many as 4 inputs, each split 3
or 4 times. what you put in you get out!
features:
4 channels
channels 1 and 2 are 1 to 4
channels 3 and 4 are 1 to 3
cascaded inputs: ch 1>ch 2>ch 3>ch 4
specifications:
current draw: v+ max 42ma, v- max 42ma
depth: 33mm
width: 4hp
