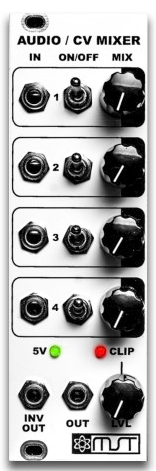

the mst audio/cv 4-channel mixer is a mixer and/or attenuator with mute switches per channel. a must for the performing modular artist!
features:
1 on/off (mute) switch per channel
jumper select ~unity gain or ~2x gain amplification
attenuator per channel
master output attenuator
normal- in-phase output & inverted, reverse-phase output
green +5v led indicates ìoptimalî level output
red ìclipî led indicates ~8v to rail
specifications:
current draw: v+ max 13.25ma, v- max 7.35ma
width: 8hp, depth: 3.5 cm (1.88 in)
