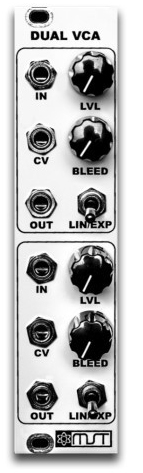

the mst dual 2164 vca is a precision ac (audio) & dc (gate triggers or control voltage) voltage controlled amplifier in 6hp. each channel has a linear or exponential response switch, the exponential resulting
in a ìpoppierî response. adjustable output level and bleed if you want to mix in your unaffected source audio. butters your toast all the way to the edge.
features:
two identical vca circuits
capable of ac and dc signal processing
linear and exponential response select switch
cv input (1:1 input-output ratio at 5vdc cv input)
signal input
cv 1 normalled to cv 2
signal 1 normalled to signal 2
bleed level adjustment per channel
specifications:
current draw: v+ max 20ma, v- max 17.5ma
width: 6hp depth: 3.5 cm (1.75 in)
