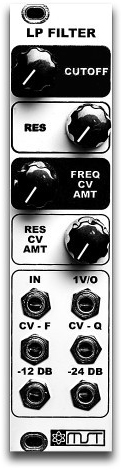

the mst low pass filter is a precision analog dual slope output 2 & 4 pole filter. simultaneous -12 db and -24 db outputs with cv control over all parameters. can be used as a 1v/o sine wave oscillator.
features:
manual control of cutoff frequency
manual control of resonance (q)
1v/o input for clean sine wave output
cv frequency input w/ attenuator
resonance cv input w/ attenuator
audio input
simultaneous -12 db and -24 db/octave outputs
specifications:
current draw: v+ max 23.5ma, v- max 15.5ma
width: 6hp
depth: 3.5cm (1.75 in)
