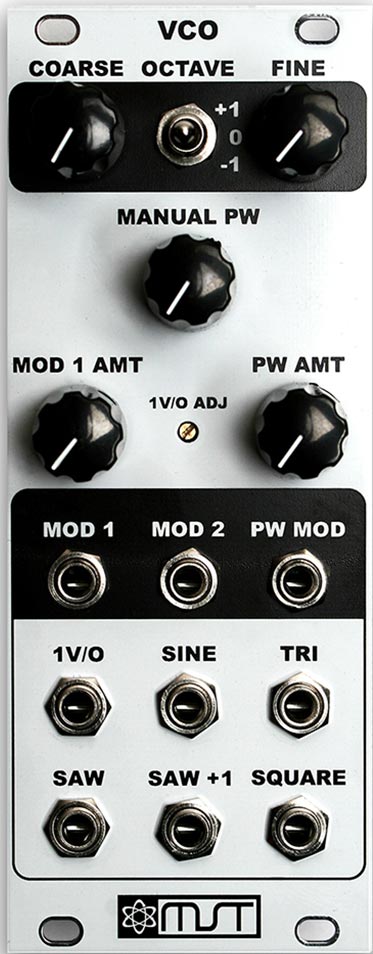

The MST VCO is a 100% analog 6-octave 1V/O trackable precision oscillator with full pulse width and modulation controls and with 5 waveform outputs.
features:
coarse and fine tuning controls
manual and cv controlled pwm (pulse width modulation)
3-octave selector switch
2 modulation inputs; mod1 can be attenuated with mod 1 amt knob
pulse width modulation input which can be attenuated
1v/o adjustment trimmer for making adjustments
1v/o cv input jack
5 waveform outputs (can be used simultaneously): sine, triangle, sawtooth, sawtooth +1 octave, square
frequency range: 2hz-14.39 khz (sawtooth +1: 28.77 khz)
polarity protection
specifications:
current draw: 45.9ma on +12v; 46.3ma on -12v
width: 10hp
module depth: 1 7/16 inches (3.7 cm)
