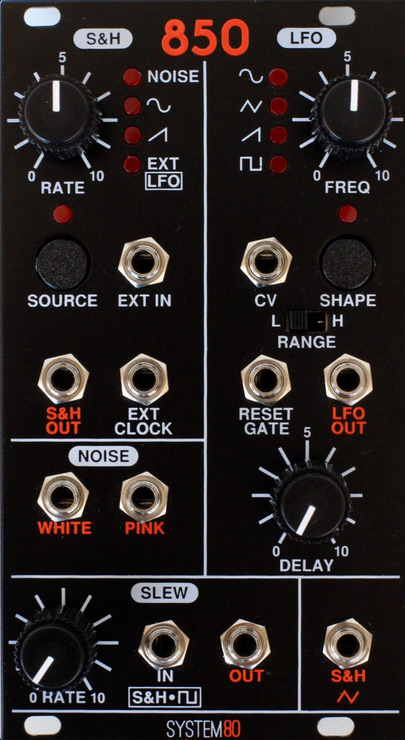

system80 850
price : $275.00
|
|
the 850 is a fully analog utility module that combines a voltage controlled lfo, sample & hold, noise source, and a slew limiter. the s&h section is normalized to pink noise (random) or any of the outputs of
the lfo without patching. the output of the s&h circuit is normalized to the slew limiter input, allowing slew to be added to the s&h signal. the internal clock driving the s&h doubles as an auxiliary
triangle shape lfo. the main voltage controlled lfo features an adjustable delay circuit triggered by an external rising pulse, allowing a gradual increase in lfo amplitude after a reset pulse.
features
voltage controlled lfo with selectable sine, triangle, ramp and square output
lfo gate/reset input and adjustable rise time after reset
s&h with internal clock, external clock, and external sample input
auxiliary triangle lfo output from s&h clock
white and pink noise sources
slew limiter with input normalization to s&h output or s&h clock pulse
open source
850 is open source hardware. the design files are available on github.
specifications:
width: 14 hp
depth: 28 mm
power: 40ma +12v, 20ma -12v
download the users manual here.
|
