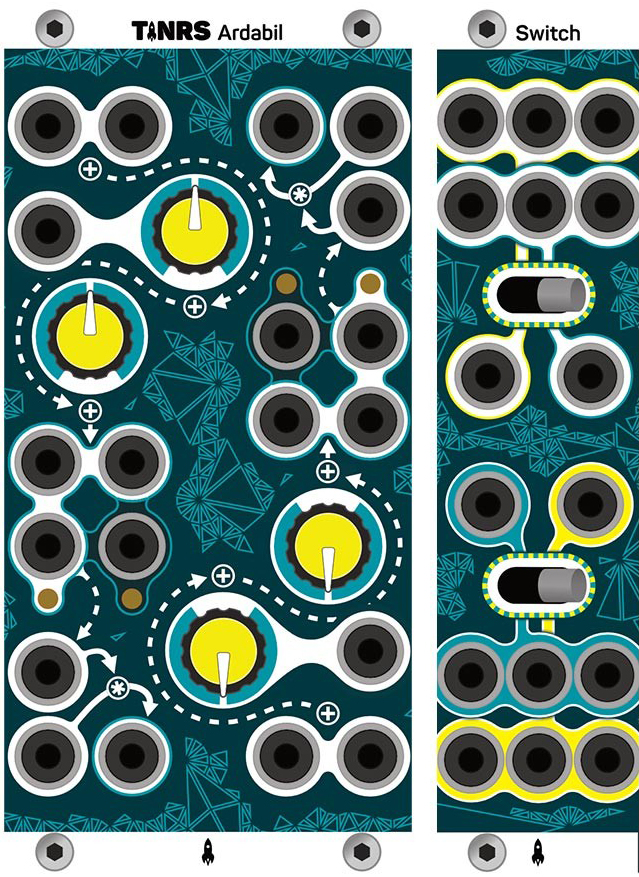

about the ardabil:
the ardabil utiltiy module allows you to get more out of your modular system. utilities are usually not the first thing that you think of when you are dreaming your system together. but you do need them and you need good ones. this is tinrs's collection of
connections that we think will help you shape and mix your signal through your system. a comfortable structure that you might want to keep in the middle of your system.
features:
adder inputs: your thread starts with two cv inputs that add together without changing their scaling.
attenuverter input & knob: you can plug in any cv and let the knob scale your cv up or down -1 to +1 before it is added to your thread.
offset knob: with this knob you can add a fixed -5v to +5v to your woven signal.
multiple outputs: threads into three buffered outputs; one has an led that lights up when there is a positive signal.
inverted output: the fourth jack is an inverted output with a led that lights up when there is a positive signal (which is a negative signal in the other three outputs).
vca inputs and output: the cv input controls the volume of the audio input into the output. the cv input defaults to the signal from a buffered output.
one thread runs: adder + attenuverter + offset into buffered outputs
buffered output * -1 into inverted output: cv (default is buffered output) * audio into vca output
specifications:
type: utility module
width: 12hp
depth: 20mm (skiff friendly)
power usage +12v: 80ma
power usage -12v: 2ma
about the switch:
two independent dual gang switches with three positions that add a layer of choice to your system. a double double on-on-on. you can patch up to six things and select two at a time. twice. every switch selects one out of three signal paths for both paths. our
switch module is completely passive and will have no effect on the signal you run through it. very satisfactory clonk-clonk-clonk alpha lever switch
specifications:
type: utility module
width: 6 hp
depth: 20mm (skiff friendly)
power usage +12v: 0ma
power usage -12v: 0ma
