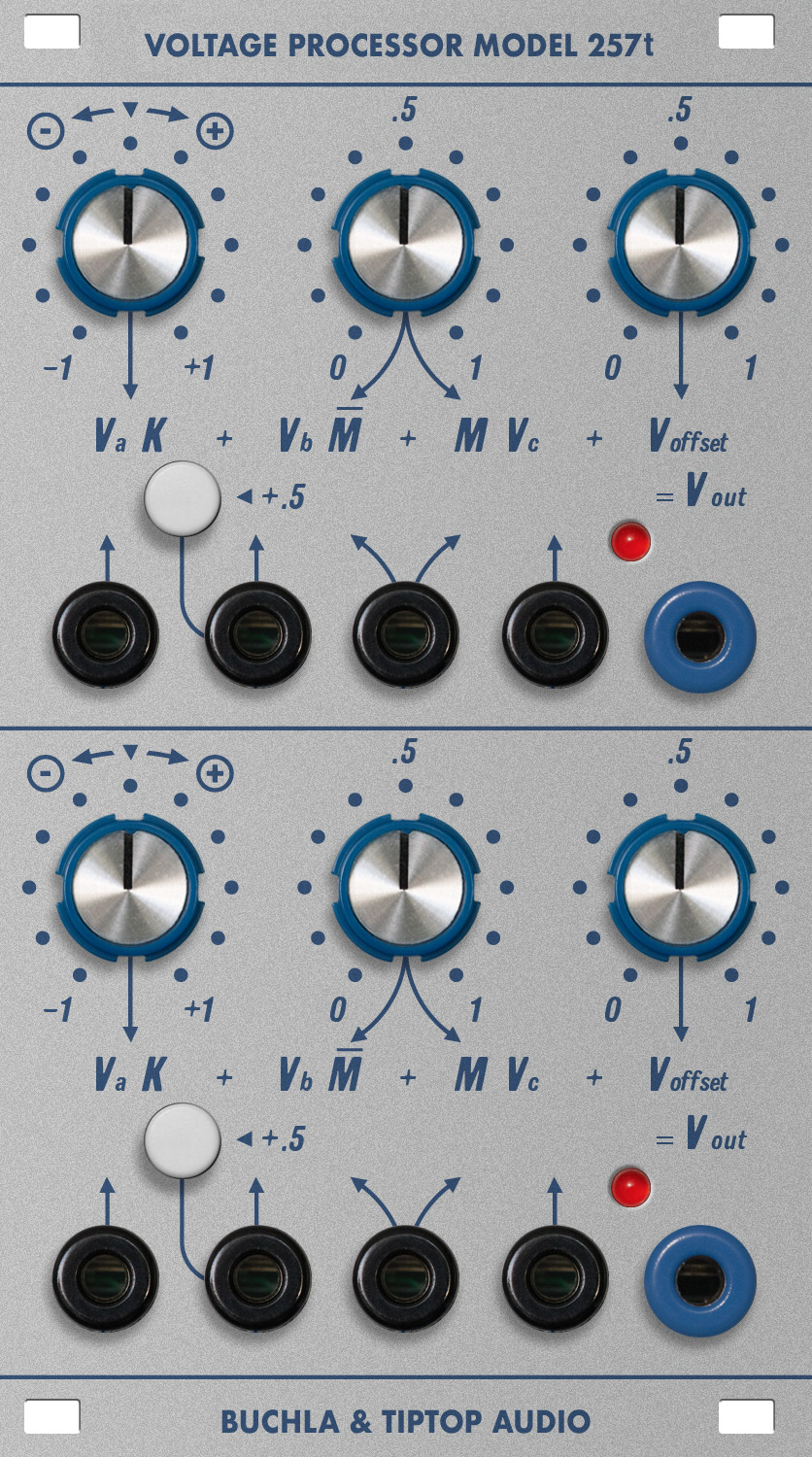

buchla/tiptop audio 257t: voltage processor price : $165.00

model 257 dual control voltage processor consists of two identical sections, each of which permits several applied control voltages to define a single output voltage according to the equation:

(va * k) + ((vb * (1-m)) + (vc * m)) + voset = v_ou

the algebraic manipulations possible with this module include addition, subtraction, scaling, inversion, and multiplication. also incorporated is the capability of using one control voltage (m) to transfer control from one applied voltage (v_b) to another (v_c).

features:
attenuverter
va is the voltage input a for attenuverter (left jack on the panel)
k knob can scale the incoming va voltage either positively or negatively

crossfader
vb is the voltage input b for the left side of the crossfader (second jack from the left)
+.5 switch adds 5 volts to the input of vb
vc is the voltage input c for the right side of the crossfader (fourth jack from the left)
m scales vb from 1 to 0 based on the position of m knob
m scales vc from 0 to 1 based on the position of m knob
the middle cv input at m/m can crossfade between vb and vc (third jack from the left)
the m knob and m cv added together to control crossfade position

oset
voset adds 0 - 10 volts to any combination of va + vb + vc

output
vout is the combined voltage of the attenuverter, crossfader and oset (right jack on the panel)

specifications:
size: 14hp
depth: 25mm
power: +12v 45ma / -12v 22ma

download the users manual here.
