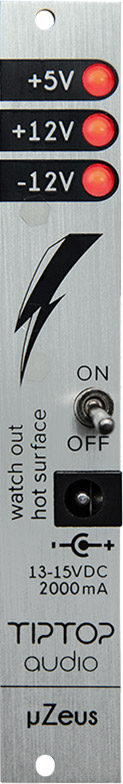

tiptop audio μzeus: silver (with flying bus board, no power supply) price : $85.00

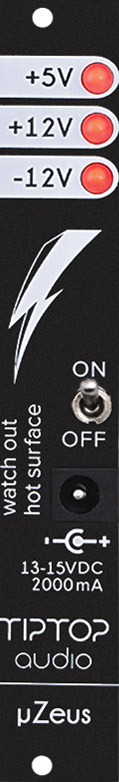

μzeus: black (with flying bus board, no power supply) price : $85.00
1000ma μzeus universal adapter (100-240v) price : $25.00
3000ma μzeus universal adapter (100-240v) price : $35.00
μzeus flying busboard spare cable (single cable with 5 connectors) price : $12.00

the μzeus is a 4hp power supply module for eurorack format synthesizers. it is the smallest and most powerful power supply available for its size. there are two versions available:

1. μzeus with flying bus boards- this version features two ribbon bus boards. the ribbon bus boards are approximately 14 inches long and each cable features 5 connectors (so 10 connectors total on a stock μzeus). additional flying bus boards of the same spec can be purchased above (μzeus flying busboard spare cable, single cable with 5 connectors). all you have to do is plug in your modules and play.

2. μzeus with quick fit terminals- this version features four standard spade terminals to connect to rigid bus boards like the zeus passive bus board. click here to download the usual manual

the μzeus mixes linear and switching power technology to produce 1000ma at +12v, 500ma at -12v and 170ma at +5v. it uses a standard +15v dc non-regulated wall adapter for power.

1000ma μzeus universal adapter:
this is tiptop's low cost 1000ma wall-plug ac adapter for the μzeus and is universal (100-240v). it is rated at 1000ma and is made with heavy gauge wire for better grounding and a specifically set output voltage that helps keep the μzeus cooler under load in comparison to previous adapter models. works worldwide but ships with a us power plug.

3000ma μzeus boost universal adapter:
this is a brick style ac power adapter made to power both the new mantis cases and the μzeus. when powering a μzeus it will double the capacity of the uzeus +12v rail up to 2000ma. this is especially great for systems with digital modules that consume most of their current from the +12v rail. it is rated at 3000ma and is made with heavy gauge wire for better grounding and a specifically set output voltage that helps keep the μzeus cooler under load in compare to previous adapter models. it is a good option for users maxing out the standard adapter shipped with the happy ending kit. please note that this adapter does not comes with an iec cable, this needs to be sourced separately. the power supply does work worldwide (100-240v).
