verbos electronics complex oscillator price : $659.00

in the west coast philosophy of synthesis, one oscillator modulating another is a classic way of creating rich timbres. voltage control of the modulation and of the waveshape is essential for evolving the sounds from whatever cv sources.

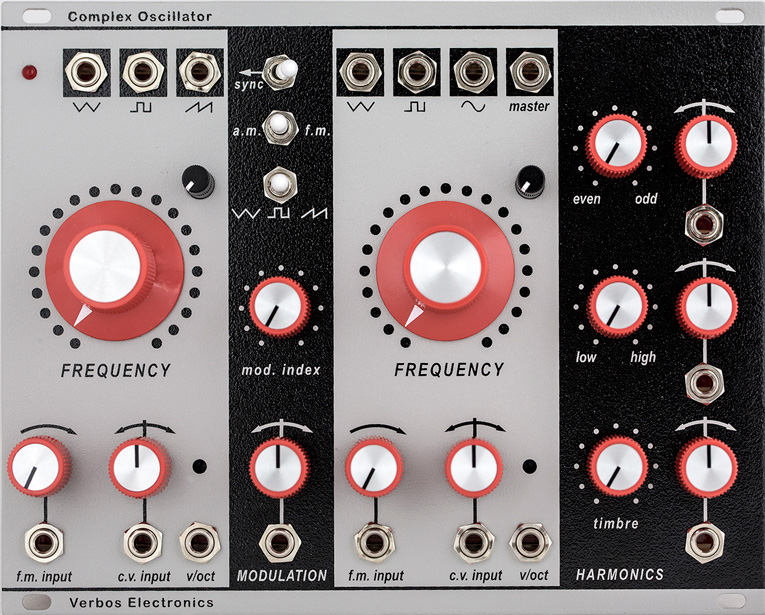

this module is dual oscillator configured as a master oscillator with an involved voltage controlled waveshaper and a modulation oscillator that can be used for frequency modulation or amplitude modulation.

the waveshape of the modulation oscillator can be set to triangle, square or saw, each with a dedicated output. modulation amount can be voltage controlled with a reversing attenuator on the cv input.

the master oscillator has dedicated outputs for triangle, square and sine waves. the master output comes from the waveshaper that can blend from sine to square to saw to folded sine all from voltage control with reversing attenuators on all of the cv inputs.

the oscillators are analog triangle cores with old school discrete transistor exponential converters. each has inputs for linear and exponential fm, the exponential with a reversing attenuator. of course the oscillators both have 1 volt/octave trimmed cv inputs as well.

specifications:
32hp
26 mm depth with power cable attached
power consumption: 70mA +12, 50mA -12
