verbos electronics
harmonic oscillator

price : $709.00

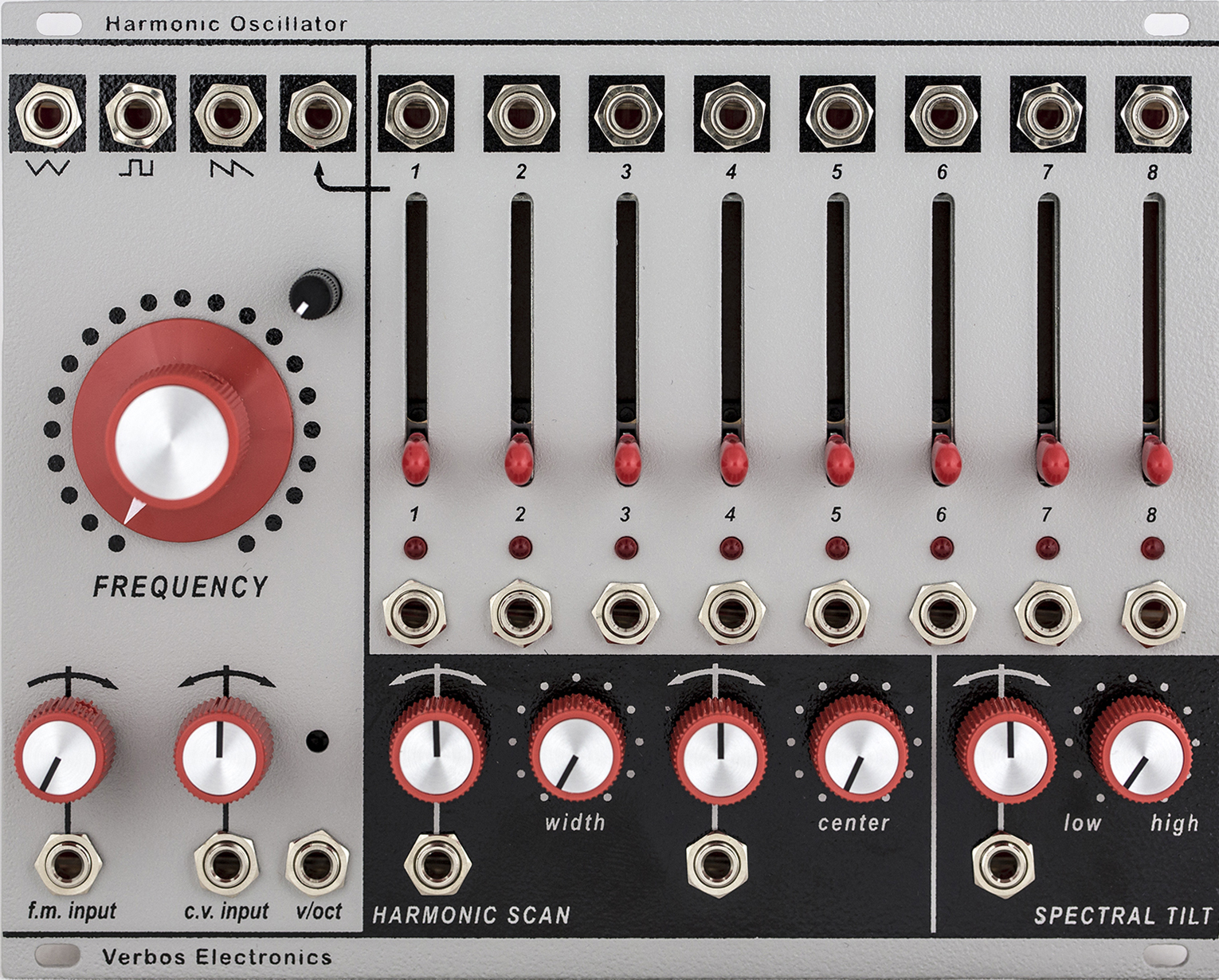

Harmonic Oscillator

for the first time in eurorack, this oscillator module provides outputs for triangle, saw, square and all of the first 8 harmonics as sine waves. a voltage controlled mixer with various methods of address allows the user to scan, tilt and mix the harmonics with both panel and external voltage control.

it is built on a discrete, all analog triangle core with an old school discrete transistor exponential converter. it has inputs for linear and exponential fm, the exponential with a reversing attenuator. of course there's a 1 volt/octave trimmed cv input as well.

specifications:
32hp
26 mm depth with power cable attached
power consumption: 120mA +12, 90mA -12
