verbos electronics
touchplate keyboard

price : $869.00

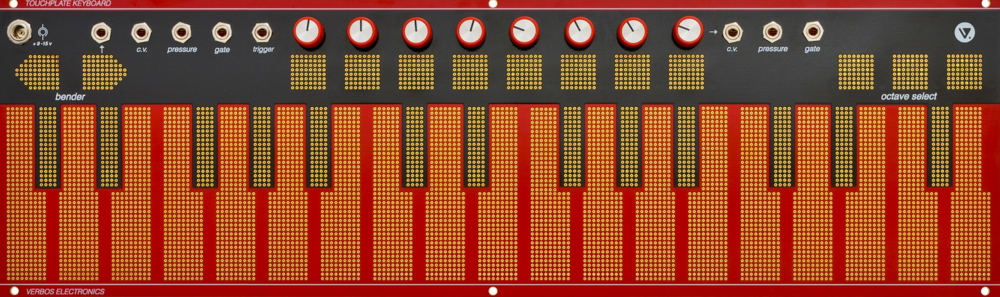

Touchplate Keyboard

in the great tradition of west coast synthesis, the verbos electronics touchplate keyboard is a gold plated controller with 3 independent sections for sending control voltage signals. first is a 32 key volt/oct trimmed piano arrangement with 3 octave selects. it has an output for pitch cv, pressure (actually a measurement of the surface area of the finger touching the key), gate and 10ms trigger. second is a pressure sensitive up/down bender that can be used to bend the vco or anything that needs bending. finally, an 8 key tunable keyboard with cv pressure and gate outputs. the keyboard can be powered from normal euro power or an external 9-15 volt positive tip dc supply, for use with un-power skiffs.

specifications:
84 hp
