vermona
mex3: midi extension for melodicer

price : $199.00

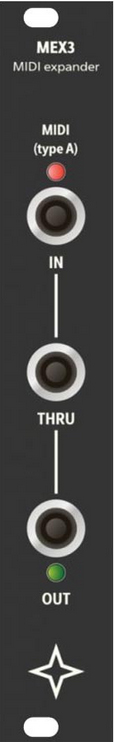

mex3: MIDI Extension for meloDICER

mex3 extends your melodicer with a comprehensive midi interface.

dicing midi notes
free your melodicer from the limitations of the modular system. with mex3, you can send diced patterns or permanently randomized sequences to your favorite synthesizer or record them as midi tracks in your daw.

triple harmony
melodicer now supports polyphony. sequences are no longer limited to just one voice. use melodicer's uniquely creative user interface to easily compose up to three-voice chords and melodies.

complete control
with mex3, your melodicer sends and receives control change messages for all switches, faders, and knobs. record all your interactions with the module in the midi sequencer and recall them at will. or send controller snapshots to melodicer to follow harmony changes in your composition.

precise time signature
vermona redesigned melodicer's internal clock base from scratch. with mex3, it can now synchronize directly to a midi clock. even shuffled clock signals, such as those generated by the floatingpoint instruments multiclock, are recognized and implemented by melodicer. for perfect synchronization with your daw, it now responds to midi realtime messages start, stop and continue.

why you will love mex3
mex3 is not only a practical tool, but also a lot of fun. with mex3, you can take your melodicer to new musical dimensions and inspire the midi world with its creative potential. whether you want to control your favorite sound generator or feed your daw with fresh ideas. mex3 and melodicer make it possible.

specifications:
in- and outputs
midi in: 3.5mm trs, type a
midi thru: 3.5mm trs, type a
midi out: 3.5mm trs, type a

power consumption
+12 volts: 10 ma

dimensions and weight
width/height: 4 hp, 3u
depth: about 25 mm
weight: 35 g

download the users manual here.
