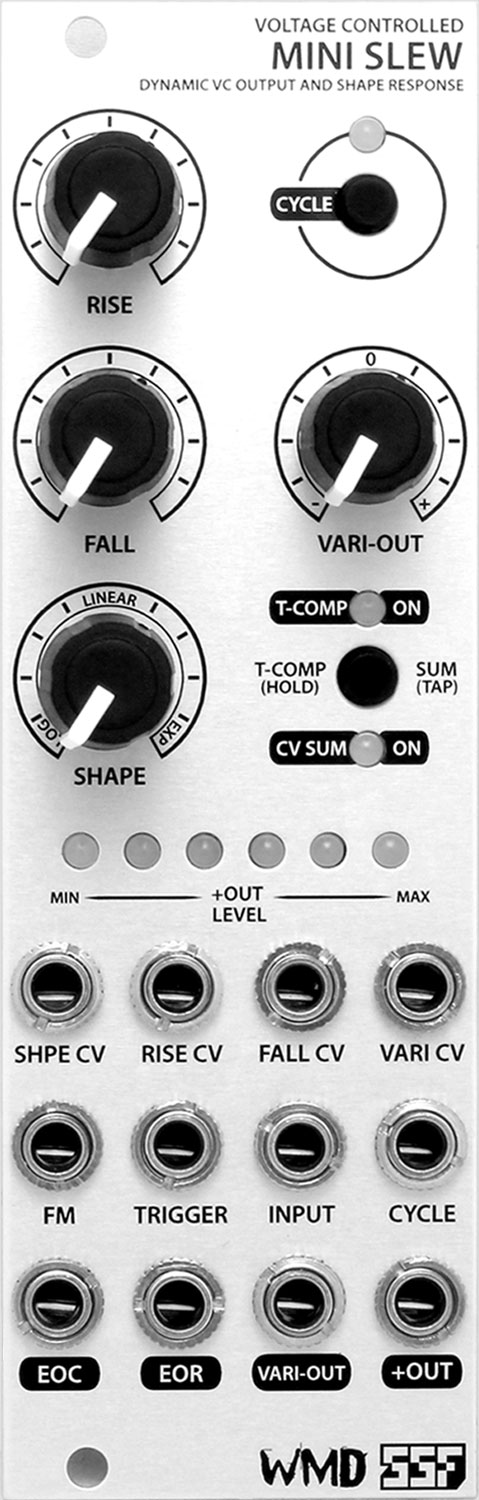

wmd/ssf vc mini slew price : $199.00

mini slew is a feature packed function generator and voltage controlled slew limiter.

transient functions are generated using the rise, fall and shape controls.

complex functions can be generated using the voltage controlled shape and vari-out via direct cv inputs.

mini slew features a novel time compensation mode which permits the timing of the transient to remain relatively constant while the shape parameter is adjusted.

cv sum mode permits a single cv patched into rise or fall to process both parameters or two cvs patched into rise and fall to be summed and applied to both parameters.

additional features include vc cycle (toggle on/off), end of rise and end of fall outputs, fm input and an led voltmeter for monitoring the amplitude of the direct positive output.

power draw: +70ma, -50ma. 8hp width. 25mm depth.

download the manual here.
