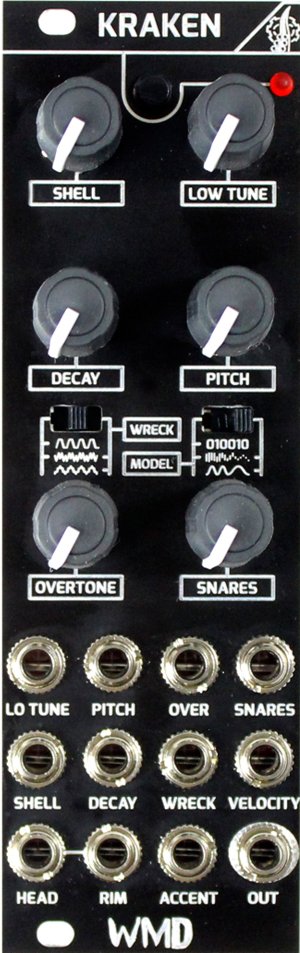

kraken is a physical modeling snare drum module for eurorack modular synthesizers.
no samples, 100% digital synthesis with the ability to make realistic snare drums of all sizes, shapes, materials, and colors. similar to crucible, kraken uses a network of classic synthesis blocks like delay, digital filters, and noise
to create a very unique resonator.
"crack-in" to the snare drum sound you're into most by adjusting parameters that corelate to physical drum properties such as shell type and size, head tightness, amount of overtone, and how tight and bright the snares sound.
you like snare samples? great! although kraken does not use any recordings to generate sound, you can get a perfectly repeatable snare sound, similar to a sampler by using digital noise to generate the sound of the "snares".
want your snare to sound more realistic? try analog noise to imitate the subtle difference of a drummer hitting the snare slightly different on each hit.
perfect pitch... kind-of. optional pitch shifter on the output widens the sonic palette as well as the frequency range, while imparting a unique character of it's own, reminiscent of old school samplers and pitch shifter pedals. pitch
knob and cv input take control of the pitch shifter when in this mode.
wreck the ship with the wreck switch and cv input. three different distortion characters push the envelope that much further with an analog style gained up hard clipping, wavefolding, and bit depth reduction. at some shell settings, gain
gets loud like running a snare mic through a distortion pedal. the wave folder sounds like over-the-top compression with lots of high frequency content. the bit depth reduction setting lets you dial in a desired amount of "vintage"
digital artifacts. moving the switch to these different modes is only a preview. use the wreck cv input for the most control and variety in sound.
kraken is begging to be sequenced. use the head, rim, and accent gate inputs to start your basic rhythm of hits, sidesticks, rimshots and accented sounds. sequence the velocity input with a variable cv source to bring the pattern to life
and put the drummer behind the kit.
pair with crater, fracture, chimera, and crucible for an inspiringly flavorful set of drums for your eurorack modular synthesizer.
features:
no samples, 100% digital synthesis
built-in distortions
digital and analog noise source
pitch shifter
wide range of sounds
two trigger inputs - hit both simultaneously for a realistic "rimshot" sound.
specifications:
size: 8hp depth: 30mm (with cables)
power: +61ma, -17ma
all cv inputs: 100k ohm impedance
cv inputs sum with knobs.
full sweep is 5v
gate inputs: 100k ohm impedance 2v threshold schmitt trigger
audio output: 470 ohm impedance
22vpp range
4.0ms latency max
