wmd
voltera

price : $269.00

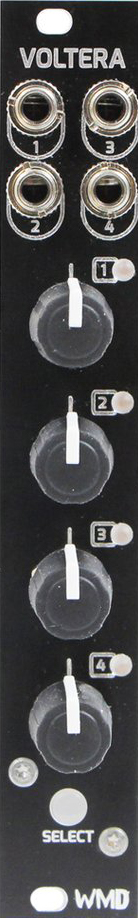

Voltera

voltera is a voltage expander module for the metron trigger and gate sequencer and adds 4 bipolar voltage tracks in 4hp. up to 16 volteras can be added to a single metron giving you up to 64 cv sequencing lanes for your eurorack modular system!

with independent voltage ranges and quantize settings per track, voltera allows for real time control over 4 different parameters at once, allowing you to dial that track to the parameter you are sequencing.

sequence melodies, modulate parameters, and more with ease by adding voltera to your metron set up.

metron must be updated to firmware v1.3

features:
4 bi-polar voltage outputs in 4hp
integrated user interface with metron
quantized and unquantized voltages
stackable - up to 16 voltera modules to 1 metron
independent voltage ranges per output
analog style programming
digital accuracy
fast tactile interface
stepped voltage recording

specifications:
width: 4hp (20.32mm)
height: eurorack 3u (128.5mm panel, 112mm pcb behind panel)
depth including cables: 43mm

power:
16 pin eurorack standard power cable
reverse polarity protected
typical power consumption: +12v: 60ma, -12v: 15ma

outputs:
channel outputs 1-4: 470Ω impedance, -5v to +5v
channels are simultaneously updated.

regulatory:
rohs, ce, & weee compliant
made with lead free solder and processes

note: do not connect power to expansion headers.

download the quickstart guide here.
