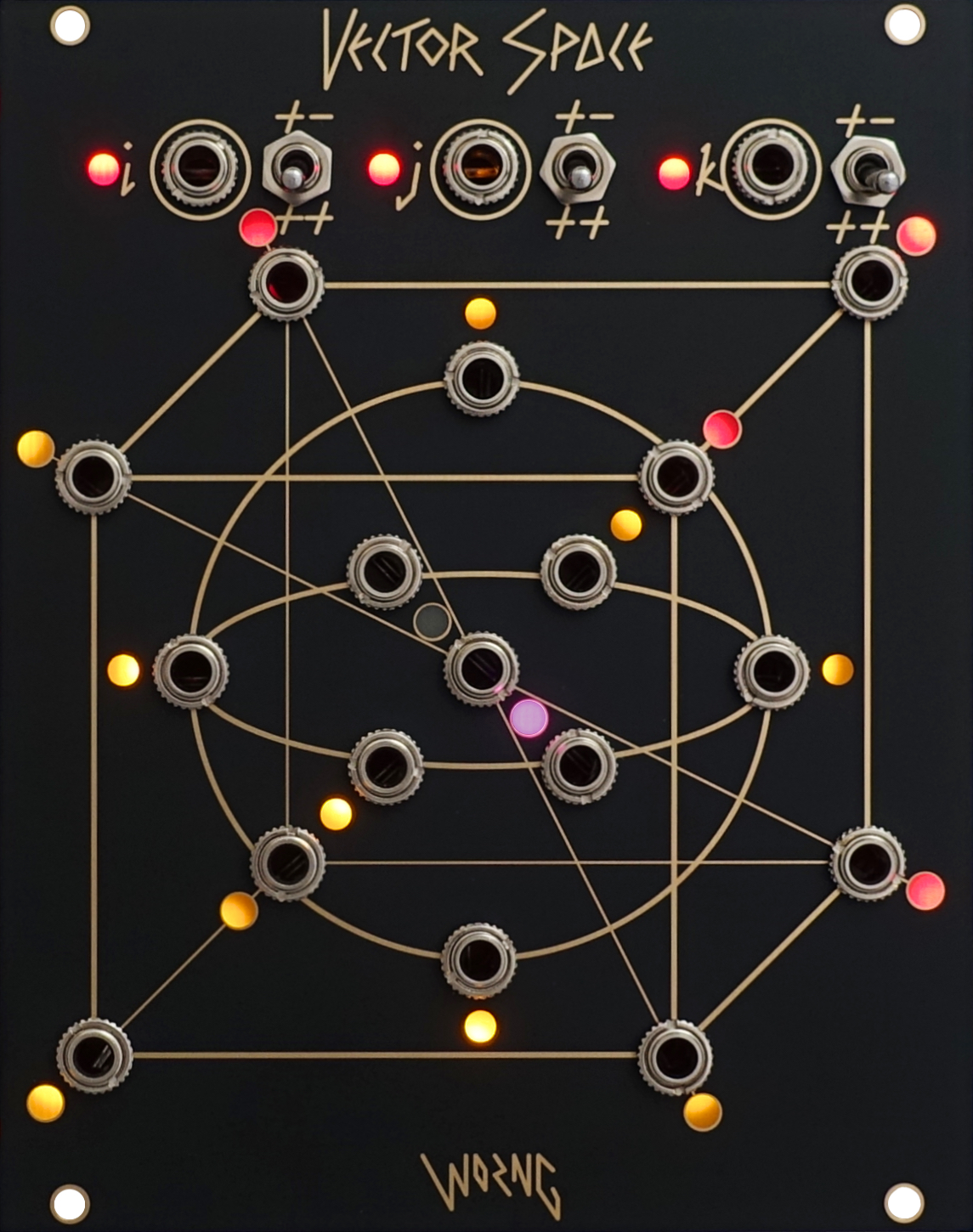

worng electronics vector space: cv vector animator price : $329.00

vector space builds on the concept of spatial cv mixing pioneered by the wiard jag and moves into three dimensions, as well as adding additional complex outputs, letting you generate seventeen interrelated voltages from three cv inputs, using 100% analogue circuitry.

use it to generate a large number of complex modulations from a small number of simple sources, and vastly increase the amount of modulation you have in your system. try running three sequencers or stepped voltages to the inputs and then running the plane outputs to a number of vco frequency inputs for complex countermelodies, run lfos or random voltages in to get complex modulation voltages out, it works particularly well feeding the outputs back to modulate the speed/shape/etc of what's being fed in, things can get very complex very quickly. the switches shift the expected input range from ±5v to 0/10v to use with either bipolar or unipolar sources, or use the switches as another input source by switching them in real time.

specifications:
width: 20hp
depth: 25mm
current draw: +12v: 150ma, -12v: 120ma, +5v: 0ma

download the manual here.
