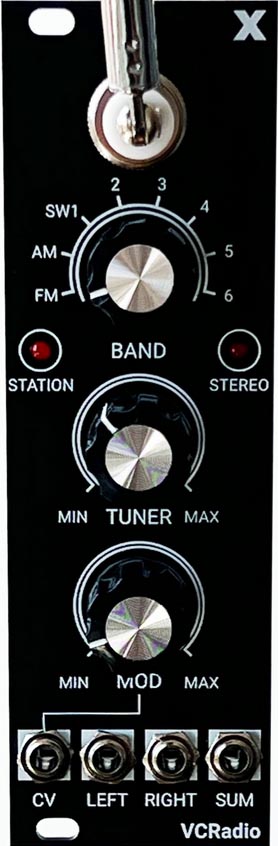

the vcradio is a voltage-controlled fm/am/sw stereo radio receiver with modulation capabilities. the unit generates a continuous stream of audio content, noises, squelches and broadcasts, depending on where you are located in the world. the unit will easily pick-up any station or noises lurking at any frequency within the selected range.

connect a lfo in the cv input to modulate the tuner knob and create beats/patterns of mixed radio signals and noises! please note that the vcradio is a highly sensitive device, it will respond very well to lfo cycles below 7hz or 8hz. but above this rate the unit will tend to ignore the modulation.

features and specifications:
eurorack module: 8hp
1 radio receiver (fm - am - 6 bands of short waves)
2 leds for indicating if the radio signal is strong (station) or stereo (stereo)
1 cv input (with gain) to modulate the tuner knob with an external signal (-5v - +5v)
3 audio outputs (left, right, sum)
2 antennas (telescopic for fm/sw and ferrite loop for am)

radio bands:
fm radio (88 - 108 mhz)
am radio (520 - 1710 khz)
sw band 1 (2,3 - 2,5 mhz)
sw band 2 (3,9 - 4,0 mhz)
sw band 3 (5,6 - 6,4 mhz)
sw band 4 (6,8 - 7,6 mhz)
sw band 5 (9,2 - 10,0 mhz)
sw band 6 (11,6 - 12,2 mhz)
