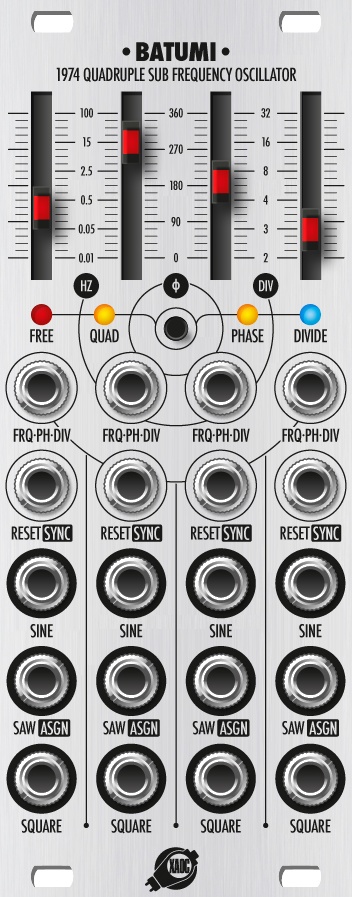

xaoc devices batumi: quadruple low frequency oscillator model of 1974 price : $330.00

batumi is a fully voltage controlled, quadruple digital lfo module with a slew of interesting and user-customizable features. each oscillator can be used independently or in one of 3 synchronized modes: quadrature, phase and divide. for each oscillator, there are sine, square and assignable (saw, ramp, triangle and trapezoid) waveform otputs available. voltage control is possible for each oscillator's frequency, reset, and external sync ("tap tempo"). the total frequency range spans from 28 hours in voltage controlled divide mode, up to 500 hz.

features:
4 voltage controlled lfos
free, quadrature, phase and divide modes
assignable waveform outputs
assignable reset/tap tempo inputs
zoom mode for precise frequency setting
usb conenctor for easy firmware updates
reverse power protection

technical details:
eurorack standard compliant
10 hp wide
45 mm deep (skiff friendly)
±12v powered
current draw: 80 ma

expandability:
an universal breakout module is planned to allow instant access to waveform selection jumpers.

click here for the user manual.
