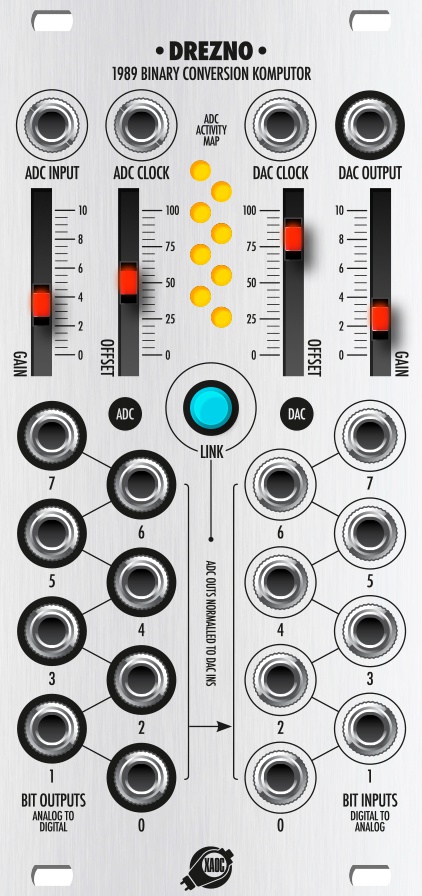

xaoc decices drezno: 1989 binary conversion komputer
price : $260.00
drezno and lipsk are the first in series of modules which constitute the leibniz binary subsystem, a group of 8-bit signal processing devices offering comprehensive digital signal manipulation, as well as
audio signal, control voltage, trigger, and gate generation. drezno is the input/output front-end of the system, consisting of an analog-to-digital converter (adc) and a digital-to-analog converter (dac),
that alone can be used for manipulating analog signals and voltages based on their binary representation.
features:
universal subsystem for creating and processing analog signals in the 8-bit digital domain
suitable for cv and audio processing with no aliasing
independent adc & dac
near 2mhz internal clock with external clock inputs to both converters
specifications:
12hp, skiff friendly
current draw: +50ma / -35ma
reverse power protection
