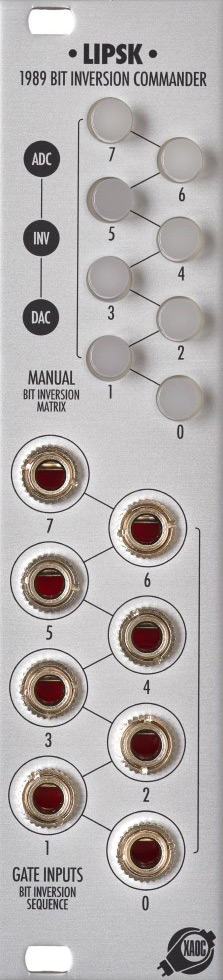

lipsk facilitates the inversion of the individual bits produced by drezno (or any other module connected to its input header at the back), and delivers the resulting code to its output header. bit inversion
can be manually controlled by pressing any of combination of its eight illuminated buttons, or it can be automated by patching gate signals into its gate input sockets. an active (5v) gate flips the state of
the respective bit. if the button is active (bit already flipped), then the gate flips the bit again yielding double inversion (no inversion). the corresponding leds show the combined effect of both manual
and gate actions. the bit processing logic is hardware-based, so there is virtually no latency, allowing the binary signals to be manipulated at extreme rates.
features:
element of the universal subsystem for creating and processing analog signals in the 8-bit digital domain
suitable for cv and audio processing with no aliasing
bit inversion with manual and cv gate control
no latency logic processing
specifications:
6hp, skiff friendly
current draw: +30ma / -0ma
reverse power protection
