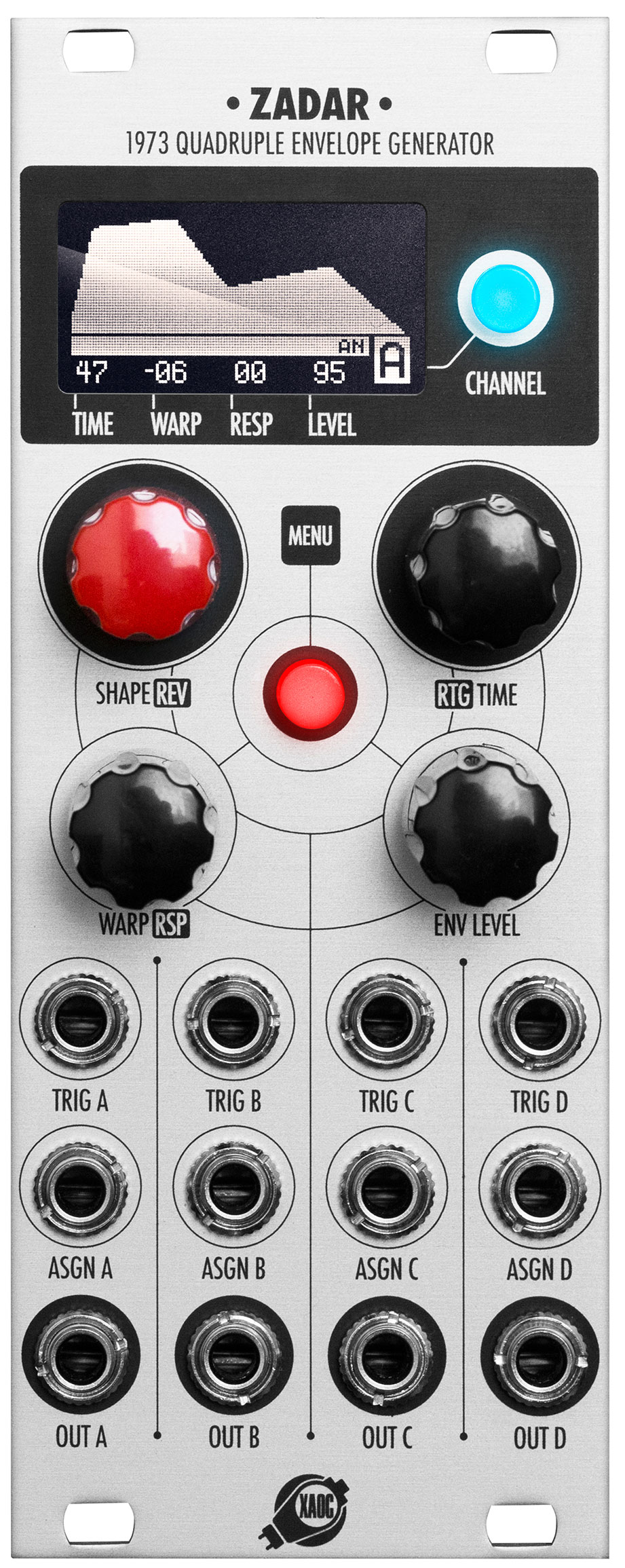

xaoc devices zadar: quadruple envelope generator model of 1973 price : $330.00

zadar is a powerful, four-channel envelope, modulation, and transient generator, in a compact yet very complete, feature-rich package. it is capable of synthesizing a vast palette of envelope shapes starting from hundreds of shapes stored in the memory. these starting shapes are not mere wavetables, but flexible vectors that can be stretched (from a fraction of a millisecond to half an hour), flipped, warped, distorted, delayed, shuffled, repeated, and amplitude modulated in real time. a set of freely assignable cv inputs allows for external control of most parameters. each channel can work independently or combined with other channels within one of the chaining and looping algorithms. operating zadar is quick and immediate, thanks to its accessible interface and crisp oled display. the main screen displays all parameters together with the currently selected shape. entering the simple 3-page menu is needed only for advanced settings. for detailed description, please refer to the manual.

features:
four independent channels
260 unique vector shapes
cycle time range: 0,85ms to 30min
shapes can be radically modified in two dimensions
immediate operation, accessible interface
complex envelope looping and chaining features
assignable cv inputs to control nearly every parameter
18 preset slots

specifications:
eurorack standard compliant
10 hp wide
skiff friendly
current draw: +90ma/-40ma
secured against reversed power connection

download the users manual here and the shapes chart here.
