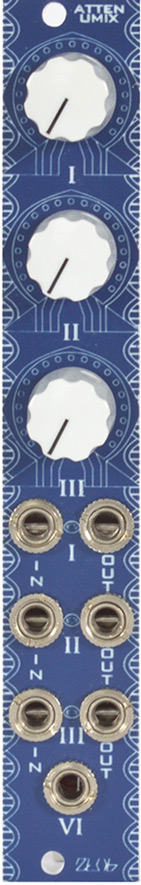

the zlob modular attenumixer is a three channel passive attenuator with a sum. each channel is normalled to the sum(vi) so it can be used as a 2 channel mixer and 1 channel attenuator, or a 3 channel mixer, or
as 3 separate attenuators. normalization to the sum is broken by inserting a jack into the outs of channels i-iii. the attenumixer works well with both cv and audio, although the potentiometers have a linear
response. since this module is passive there will be some amount of signal loss with the sum out.
current consumption: 0ma
skiff friendly. panel is made of laser cut acrylic.
